How do Plate Heat Exchangers Work

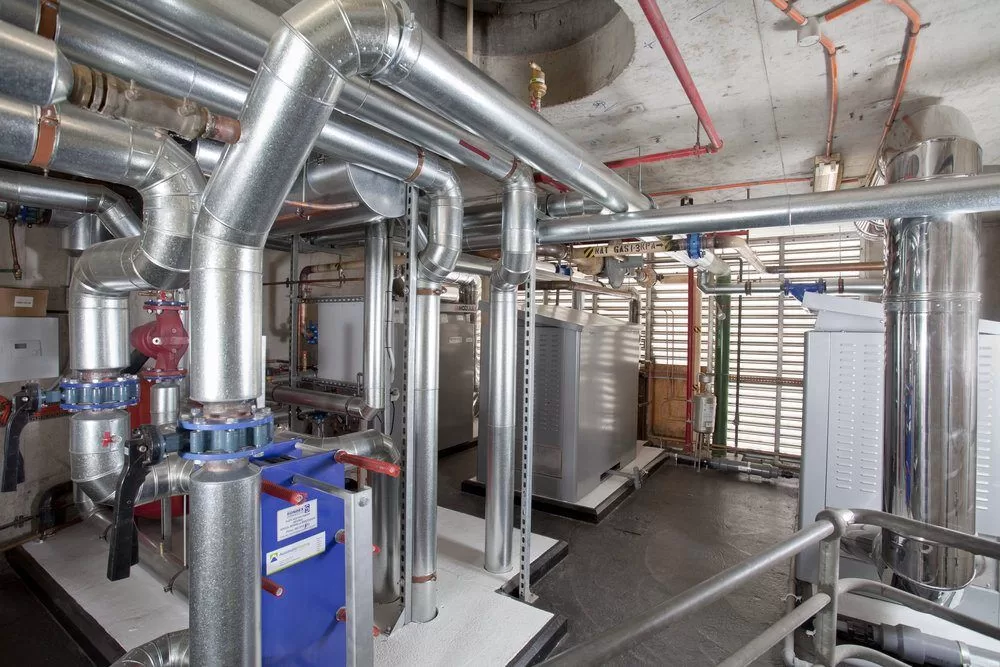

Plant room efficiency is crucial for any commercial or industrial facility to ensure optimal performance, prolong the life of equipment, and reduce energy consumption. One essential component for achieving these goals is the plate heat exchanger, which is designed to transfer heat between fluids without mixing them. This blog post will discuss how plate heat exchangers work, their benefits in protecting other plant room equipment such as boilers, and the importance of treating the water circulated through the system with X-POT side stream filtration and X-PO commercial inhibitor additive. Additionally, we will cover the significance of monitoring differential pressure with a VEXO PD-MONITOR to ensure the optimal functioning of the heat exchanger.

How Plate Heat Exchangers Work

Plate heat exchangers consist of several thin, corrugated metal plates stacked together with small gaps between them, allowing fluids to flow between the plates. Each plate is fitted with a gasket that seals the fluid channels and directs the flow of the fluids. The plates are mounted on a frame and compressed together by tightening bolts.

The heat transfer process occurs as the two fluids – one hot and one cold – flow through alternate channels between the plates. The fluids never mix, but the plates’ thinness and corrugated design create a large surface area that facilitates efficient heat transfer between the fluids. The hot fluid transfers its heat to the cold fluid through the plates, cooling the hot fluid and warming the cold fluid.

Source: Alfa Laval

Benefits of Plate Heat Exchangers

Energy Efficiency: Plate heat exchangers provide efficient heat transfer due to their large surface area and thin plates, reducing energy consumption and costs. Their compact design also requires less space in the plant room compared to other heat exchanger types.

Protecting Boilers and Equipment: By separating the primary and secondary circuits, plate heat exchangers can protect boilers and other equipment from contaminants and debris. This separation prevents debris from entering the boiler and causing damage or reducing efficiency, extending the life of the equipment, and reducing maintenance costs.

Scalability and Flexibility: Plate heat exchangers can be easily expanded or modified by adding or removing plates, offering flexibility to accommodate changes in demand or system requirements. This feature makes them suitable for a wide range of applications and industries.

Water Treatment: X-POT Side Stream Filtration and X-PO Commercial Inhibitor Additive

Proper water treatment is essential for the efficient operation of plate heat exchangers and the protection of other plant room equipment. Using X-POT Side Stream Filtration and X-PO Commercial Inhibitor additive offers numerous benefits:

Removal of Contaminants: X-POT side stream filtration effectively removes debris, particles, and impurities from the system, protecting heat exchangers, boilers, and other equipment from damage and ensuring optimal heat transfer.

Corrosion and Scaling Prevention: X-PO commercial inhibitor additive provides corrosion and scaling protection, prolonging the life of plant room equipment, and reducing maintenance costs. By preventing the build-up of scale and corrosion, the additive also helps maintain the efficiency of the heat exchanger.

Improved System Efficiency: With cleaner water and reduced corrosion and scaling, plate heat exchangers and other plant room equipment operate more efficiently, resulting in reduced energy consumption and costs.

Monitoring Differential Pressure: VEXO PD-Monitor

To ensure the proper functioning of a plate heat exchanger, it is crucial to monitor the differential pressure across the system. A VEXO PD-MONITOR can be installed to measure the pressure difference between the inlet and outlet of the heat exchanger. Monitoring the differential pressure offers several benefits:

Early Detection of Issues: A significant change in differential pressure may indicate issues such as fouling, scaling, or blockages in the heat exchanger. By monitoring the differential pressure, plant room operators can identify these problems early and take corrective action before they escalate.

Optimising Performance: Monitoring the differential pressure allows operators to maintain optimal heat transfer efficiency by identifying when the system requires cleaning, maintenance, or adjustments. Regular monitoring can help prevent unnecessary downtime and extend the life of the equipment.

Balancing System Flow: The VEXO PD-MONITOR can also help ensure the correct flow balance across the system, preventing uneven distribution of heat and ensuring that the entire system operates efficiently. A well-balanced system reduces energy consumption and prolongs the life of plant room equipment.

In conclusion, plate heat exchangers play a crucial role in enhancing plant room efficiency and protecting equipment such as boilers. Their design allows for efficient heat transfer, equipment protection, and flexibility in accommodating changing system requirements. Proper water treatment, using X-POT side stream filtration and X-PO commercial inhibitor additive, is essential for maintaining the efficiency of the heat exchanger and preventing damage to other plant room equipment. Lastly, monitoring differential pressure with a VEXO PD-MONITOR is key to ensuring optimal system performance, early detection of issues, and maintaining a well-balanced system flow.

By implementing these measures, plant room operators can optimise the performance of their plate heat exchangers, reduce energy consumption, and extend the life of their equipment, resulting in significant cost savings and enhanced operational efficiency.
