X-POT FILTERS
top class filtration
X-POT Cartridge and Bag Filters
The range of superior quality X-POT® filters provides top class filtration, surpassing UK and USA Industry Standards.
BSRIA BG29/2020 Pre-commission Cleaning of Pipework Systems recommends a 5micron filtration rate.
The X-POT utilises industry leading 0.5 micron Cartridge Filters (10x Finer) and 1 micron Bag Filters (5x Finer), capturing more debris resulting in greater energy savings and prolonged life cycle realisation.

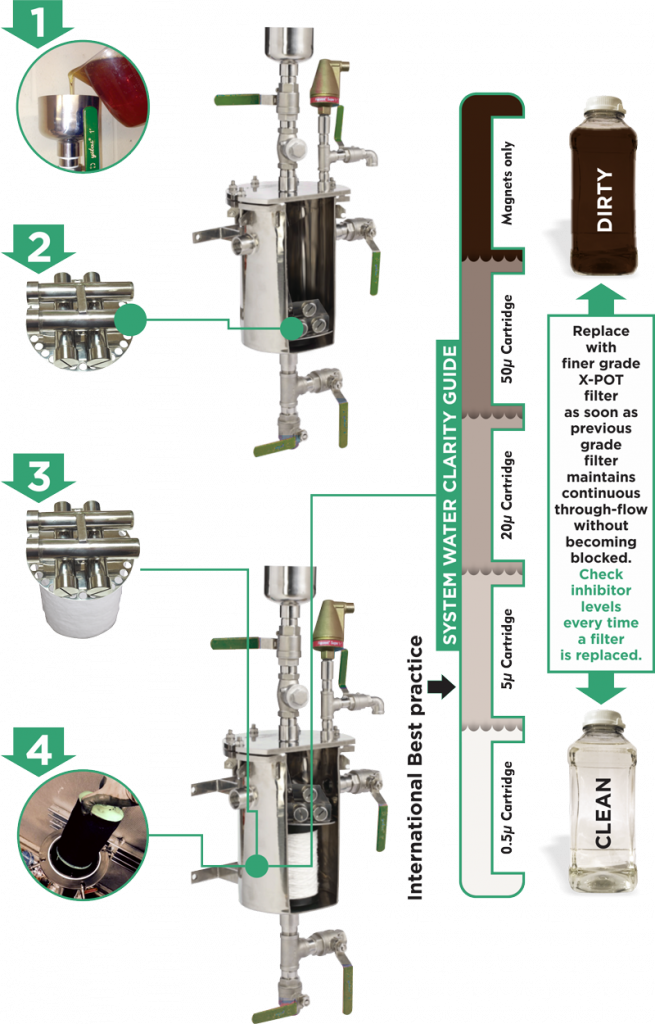

Different filter grades are available in order to step down filtration with minimal blockages.

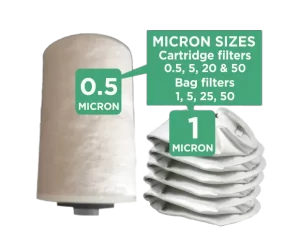

Cartridge Filters
For use with X-POT Compact & X-POT 6
| Filter Grade | Recommended Use | Product Code |
|---|---|---|
|
50 micron |
For initial / course system cleaning or no-flush cleaning with X-PO additives |
58760-F50 |
|
20 micron |
For intermediate filtration or intermediate no-flush cleaning with X-PO additive |
58760-F20 |
|
5 micron |
Fine / maintenance filtration down to ASHRAE and BSRIA system water guidelines |
58760-F5 |
|
0.5 micron |
Super-fine filtration, surpassing industry standards |
58760-F0.5 |
Bag Filters
For use with X-POT XP, X-POT XP+, X-POT XXP & X-POT HFHP
| Filter Grade | Recommended Use | Product Code |
|---|---|---|
|
50 micron |
Initial / course system cleaning or no-flush cleaning with X-PO additives |
58762-F50 |
|
25 micron |
Intermediate filtration or intermediate no-flush cleaning with X-PO additives |
58762-F25 |
|
5 micron |
Fine / maintenance filtration down to ASHRAE and BSRIA system water quality guidelines |
58762-F5 |
|
1 micron |
Super-fine filtration, surpassing industry standards |
58762-F1 |
Upgrade your X-POT with a simple and adaptive monitor for system flow issues

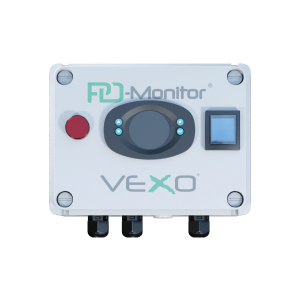

VEXO’s PD-Monitor is a packaged, wall mounted and factory tested differential pressure monitoring unit with controller, two pressure transducers, 115V Power Cord with B Plug, local alarm alert and BMS capability. Compatible with all hybrid applications.
Get in touch to discuss your system requirements
