D-POT

dosing pot

Dosing Pots are installed in a closed system to enable water treatment chemicals to be added to the system without the need to shut down the flow or operation of the system.

The VEXO® D-POT® provides a quality, durable and cost effective stainless steel vessel with innovative fatigue resistant curved design which can be installed in a left or right handed configuration and is fully compliant with the latest BSRIA BG50/2021 recommendations to avoid dead-legs.

  • Sizes: 3.5L, 6L, 11L, 15L, 20L & 25L
  • Max working temperature: 120°C
  • Max working pressure: 10 Bar in up to 15L sizes and 7 Bar in 20L & 25L sizes
  • Specification: PED 2014/68/EU SEP

  • Warranty: 5 years (60 Months) repair or replacement warranty to cover any manufacturing defects. The warranty is extended to 6 years if using X-PO10 inhibitor.

D-POT Brochure
Technical Data Sheet
BIM (RFA)
BIM (DWG)
BIM (DXF)

Compare Models

Model by Volume Connection Size (BSP) Weight (when full) Max Working Pressure Product Code
3.5 L
1/2 ”
8.5 kg
10 Bar
VDP-3.5
6 L
1/2 ”
13 kg
10 Bar
VDP-6
11 L
1/2 ”
20 kg
10 Bar
VDP-11
15 L
1/2 ”
24.5 kg
10 Bar
VDP-15
20 L
1/2 ”
31 kg
7 Bar
VDP-20
25 L
1/2 ”
39 kg
7 Bar
VDP-25

Get in touch to discuss your system requirements

Call +44 (0) 1767 500 150
Email our technical team

Our X-POT & Hydronics Range

A VEXO X-POT Compact, a stainless steel cylindrical device used for water treatment in heating and cooling systems. It features multiple green-handled valves, inlet and outlet pipes. The unit is wall-mounted with visible brackets and designed to improve system efficiency by removing air, dirt, and debris.
X-POT Compact
A VEXO X-POT 6, a stainless steel cylindrical device used for water treatment in heating and cooling systems. It features multiple green-handled valves, inlet and outlet pipes. The unit is wall-mounted with visible brackets and designed to improve system efficiency by removing air, dirt, and debris.
X-POT 6
VEXO X-POT XP A cylindrical stainless-steel multi-purpose filtration unit with various valves, including green VEXO-branded handles, a pressure gauge, and a brass air vent at the top. The unit is designed for heating and cooling systems, integrating magnetic filtration, dirt separation, and chemical dosing in one compact device.
X-POT XP
VEXO X-POT XXP A cylindrical stainless-steel multi-purpose filtration unit with various valves, including green VEXO-branded handles, a pressure gauge, and a brass air vent at the top. The unit is designed high flow high pressure heating and cooling systems, integrating magnetic filtration, dirt separation, and chemical dosing in one compact device.
X-POT XXP
VEXO X-POT HFHP, a tall, polished stainless steel high-flow, high-pressure filtration vessel. It stands on four sturdy legs and features a large flanged side inlet. The top has a secure bolted lid with multiple access ports, sensors, and valves for monitoring and maintenance. The conical bottom design aids in efficient debris collection and discharge.
X-POT HFHP

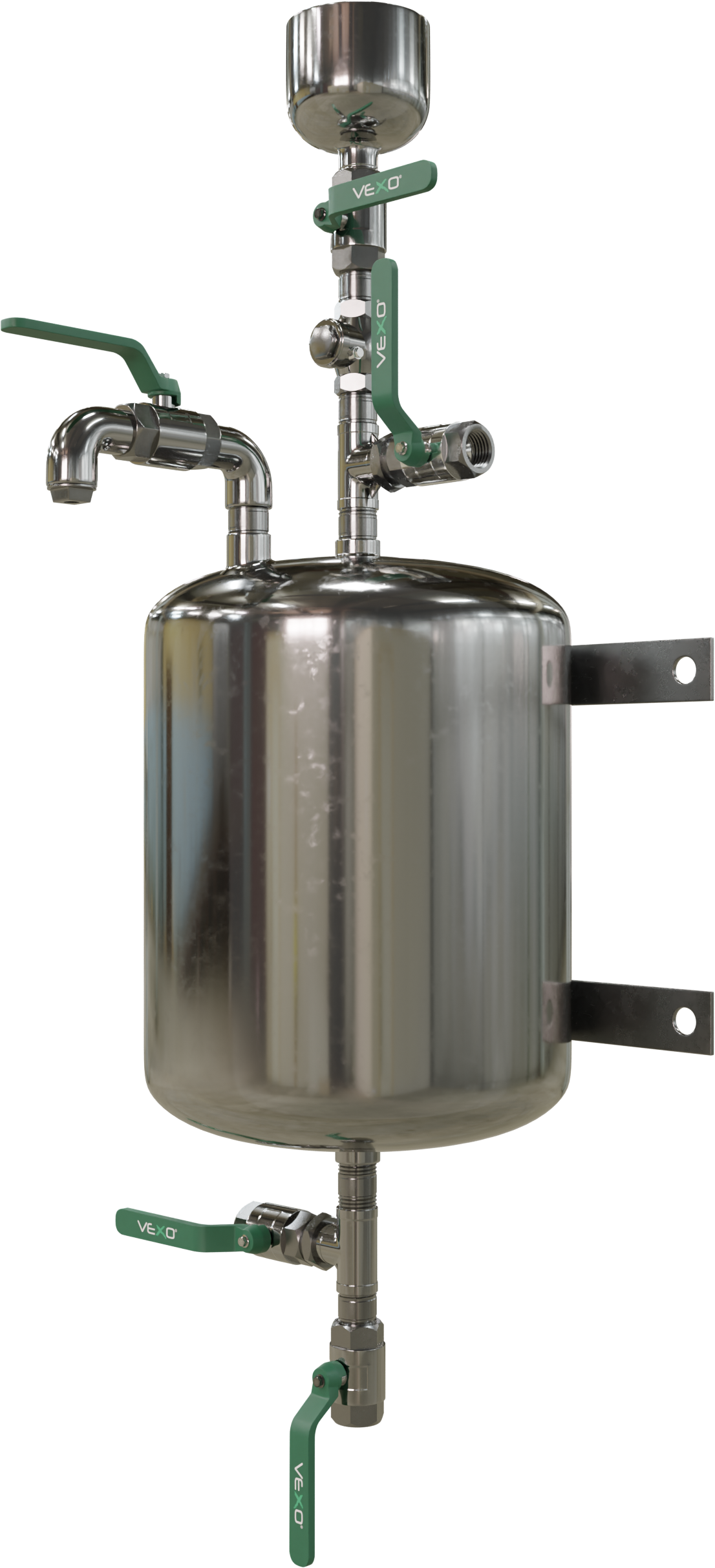

A VEXO D-POT, a stainless steel cylindrical device used for dosing water systems. It features and inlet and outlet valve with green handles, a pressure gauge at the top, and wall-mounting brackets for secure installation.
