X-POT Filters

top class filtration

X-POT Cartridge and Bag Filters

The range of superior quality X-POT® filters provides top class filtration, surpassing UK and USA Industry Standards. BSRIA BG29/2020 Pre-commission Cleaning of Pipework Systems recommends a 5micron filtration rate.

The X-POT utilises industry leading 0.5 micron Cartridge Filters (10x Finer) and 1 micron Bag Filters (5x Finer, capturing more debris resulting in greater energy savings and prolonged life cycle realisation.

Different filter grades are available in order to step down filtration with minimal blockages.

Our cartridge filters are now produced using polypropylene manufactured from sustainable feedstocks, such as waste cooking oil. As one of the first industrial filter manufacturers to do so, we are taking a significant step towards reducing ours and our customers’ carbon footprint. This change represents a CO2 saving of 0.5kg per cartridge filter.

A white cartridge filter labeled "0.5 micron" and a stack of white bag filters labeled "1 micron" are displayed with a green chart listing available micron sizes for cartridge and bag filters.
An instructional diagram showing the internal components and filtration process of an X-POT system. It includes four numbered steps with close-up insets highlighting the inlet for system inhibitors, placement of magnetic rods, cartridge filter installation, and collection of debris. A water clarity guide on the side displays the transition from dirty to clean water through progressively finer filter grades.

Cartridge Filters

For use with X-POT Compact, X-POT 6 & X-POT 6+
Filter Grade Recommended Use Product Code (4-pack) Product Code (20-pack)
50 micron
For initial / course system cleaning or no-flush cleaning with X-PO additives
VX-CFILTERS(4)50MIC
VX-CFILTERS(20)50MIC
20 micron
For intermediate filtration or intermediate no-flush cleaning with X-PO additive
VX-CFILTERS(4)20MIC
VX-CFILTERS(20)20MIC
5 micron
Fine / maintenance filtration down to ASHRAE and BSRIA system water guidelines
VX-CFILTERS(4)5MIC
VX-CFILTERS(20)5MIC
0.5 micron
Super-fine filtration, surpassing industry standards
VX-CFILTERS(4)0.5MIC
VX-CFILTERS(20)0.5MIC
Cartridge Filter Data sheet

Bag Filters

For use with X-POT XP, X-POT XP+, X-POT XXP & X-POT HFHP
Filter Grade Recommended Use Product Code (4-pack) Product Code (20-pack)
100 micron
Initial / very course system cleaning or no-flush cleaning with X-PO additives
V-XBFILTERS(5)-100MIC
V-XBFILTERS(40)100MIC
50 micron
Initial / course system cleaning or no-flush cleaning with X-PO additives
V-XBFILTERS(5)-50MIC
V-XBFILTERS(40)50MIC
25 micron
Intermediate filtration or intermediate no-flush cleaning with X-PO additives
V-XBFILTERS(5)-25MIC
V-XBFILTERS(40)25MIC
5 micron
Fine / maintenance filtration down to ASHRAE and BSRIA system water quality guidelines
V-XBFILTERS(5)-5MIC
V-XBFILTERS(40)5MIC
1 micron
Super-fine filtration, surpassing industry standards
V-XBFILTERS(5)-1MIC
V-XBFILTERS(40)1MIC
Bag Filter Data sheet

Upgrade your X-POT with a simple and adaptive monitor for system flow issues

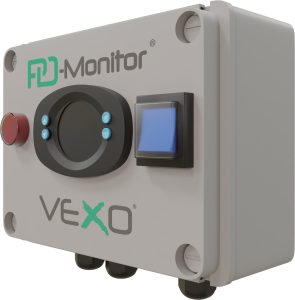

VEXO’s PD-Monitor is a packaged, wall mounted and factory tested differential pressure monitoring unit with controller, two pressure transducers, 240V ac mains cable and BMS capability.


Find out More
A VEXO PD-Monitor device, featuring a compact, rectangular grey enclosure with a circular control interface, blue function buttons, a red emergency stop button, and a blue display screen. The unit is designed for monitoring and managing fluid dynamics in building systems.

Get in touch to discuss your system requirements

Call +44 (0) 1767 500 150
Email our technical team
Book a Demo

Our X-POT & Hydronics Range

A VEXO X-POT Compact, a stainless steel cylindrical device used for water treatment in heating and cooling systems. It features multiple green-handled valves, inlet and outlet pipes. The unit is wall-mounted with visible brackets and designed to improve system efficiency by removing air, dirt, and debris.
X-POT Compact
A VEXO X-POT 6, a stainless steel cylindrical device used for water treatment in heating and cooling systems. It features multiple green-handled valves, inlet and outlet pipes. The unit is wall-mounted with visible brackets and designed to improve system efficiency by removing air, dirt, and debris.
X-POT 6
VEXO X-POT XP A cylindrical stainless-steel multi-purpose filtration unit with various valves, including green VEXO-branded handles, a pressure gauge, and a brass air vent at the top. The unit is designed for heating and cooling systems, integrating magnetic filtration, dirt separation, and chemical dosing in one compact device.
X-POT XP
VEXO X-POT XXP A cylindrical stainless-steel multi-purpose filtration unit with various valves, including green VEXO-branded handles, a pressure gauge, and a brass air vent at the top. The unit is designed high flow high pressure heating and cooling systems, integrating magnetic filtration, dirt separation, and chemical dosing in one compact device.
X-POT XXP
VEXO X-POT HFHP, a tall, polished stainless steel high-flow, high-pressure filtration vessel. It stands on four sturdy legs and features a large flanged side inlet. The top has a secure bolted lid with multiple access ports, sensors, and valves for monitoring and maintenance. The conical bottom design aids in efficient debris collection and discharge.
X-POT HFHP
A VEXO D-POT, a stainless steel cylindrical device used for dosing water systems. It features and inlet and outlet valve with green handles, a pressure gauge at the top, and wall-mounting brackets for secure installation.
D-POT
A VEXO X-POT 6+ Side Stream Filter, featuring a cylindrical stainless steel body with multiple valves, pipes, and connectors attached. The filter is mounted vertically on a black panel, with visible control components and fittings designed for industrial fluid management systems.
X-POT 6+
VEXO X-POT XP+ A cylindrical stainless-steel multi-purpose filtration unit with various valves, including green VEXO-branded handles, a pressure gauge, an integrated pump, pressure differential monitor and a brass air vent at the top. The unit is designed for heating and cooling systems, integrating magnetic filtration, dirt separation, and chemical dosing in one compact device.
X-POT XP+
A VEXO PD-Monitor device, featuring a compact, rectangular grey enclosure with a circular control interface, blue function buttons, a red emergency stop button, and a blue display screen. The unit is designed for monitoring and managing fluid dynamics in building systems.
PD-Monitor
A close-up image of a VEXO Y-MAG Y-strainer with threaded connections and an embossed label reading 'Y-MAG DZR BRS.' The strainer features a hexagonal cap with a green drain plug for easy maintenance. An arrow indicating the direction of fluid flow is engraved on the body. The component is designed for use in plumbing or heating systems to filter out debris and protect equipment.
Y-MAG
A pyramid-shaped stack of green VEXO filter cartridges with two white cartridge filters on top, arranged symmetrically against a white background.
X-POT Filters
A green X-POT 6 unit, a filter cartridge, a brass air vent, treatment chemicals, a test kit, and informational brochures are shown as part of a complete kit above an open cardboard box with arrows pointing to the components.
Installation Packs
