X-POT XP
Side Stream Filtration

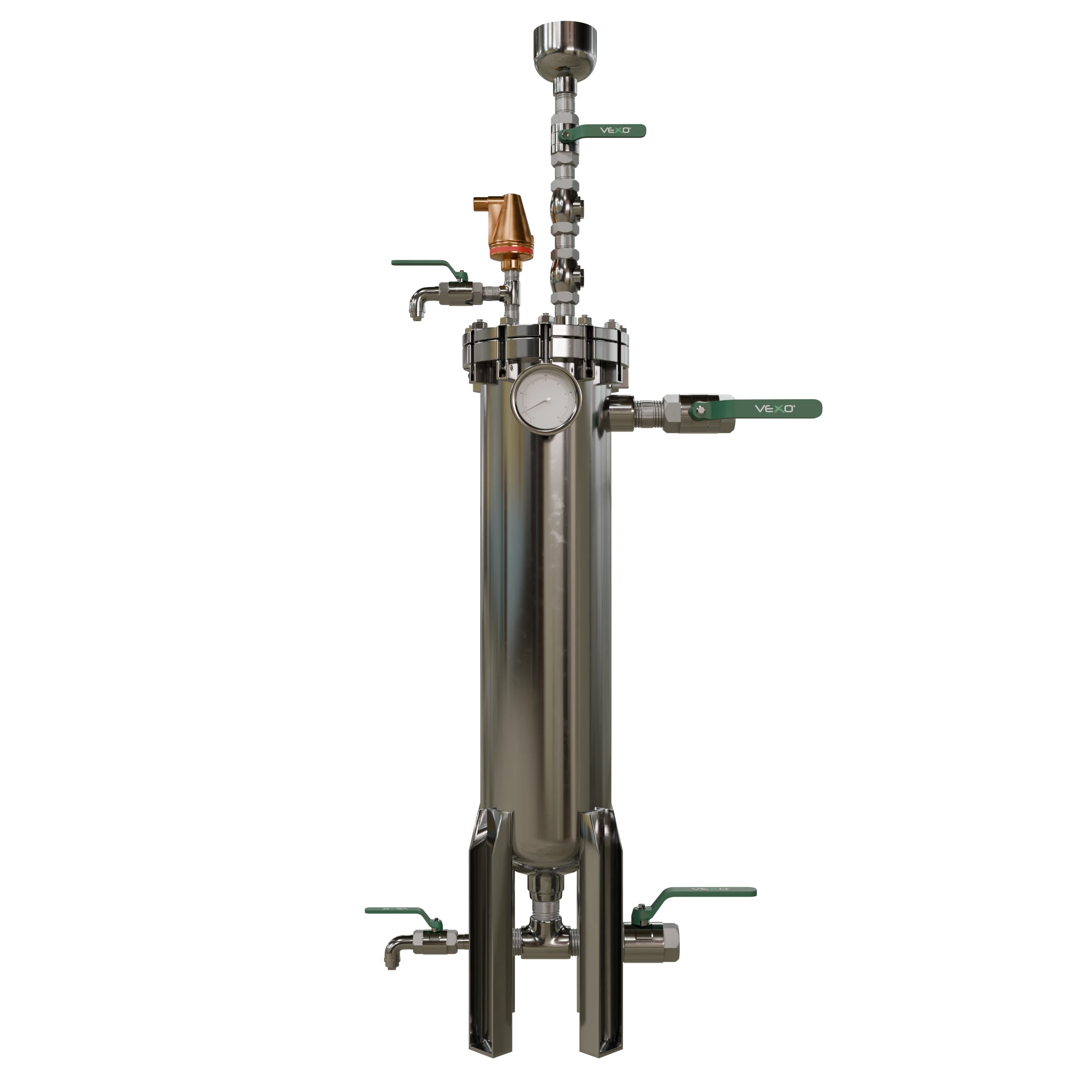

X-POT XP
large to very large commercial systems
Side stream filtration including a magnetic filter, cartridge filter, air and dirt separator and dosing unit.
- Max working pressure: 16 Bar
- Max system volume: 302,400 Litres
- Flow rate: up to 1 L/s
- Pipe connection: 2” BSP
- Filtration rate: down to 1 micron
- Specification: PED 2014/68/EU “CE” marked
- Product Code: V-XPOTXP
- 8 Year Standard Warranty
downloads
Previous
Next
The X-POT XP is an all-in-one solution that replaces the need for separate equipment such as:
- Magnetic Filters – In the primary chamber all magnetic particles are removed by 13 neodymium powerful rare earth magnets, all encased in easy to clean 316 stainless steel.
- Bag Filters – The system water then passes through the stainless steel baffle plate into a secondary chamber where the fine filtration bag captures non magnetic debris, biofilm and corrosive micro bubbles.
- Dosing Pots – The tundish on top of the primary chamber allows for easy dosing of the adequate water treatment chemicals required for the system.
- Dirt & Air Separators – The automatic air vent removes air accumulated in the system without the need for manual intervention preventing problems such as corrosion and cavitation in the circulation pumps.
Compare Models
| Model | Max working pressure | Max system volume | Flow rate | Pipe connection | Filtration rate | Integrated pump | Fault alarm | Enhanced BMS Compatibility |
|---|---|---|---|---|---|---|---|---|
|
X-POT Compact |
4 Bar |
34,560 Litres |
Up to 0.4 L/s |
1/2” BSP |
Down to 0.5 micron |
N |
N |
N |
|
X-POT 6 |
7 Bar |
86,400 Litres |
Up to 1 L/s |
1”’ BSP |
Down to 0.5 micron |
N |
N |
N |
|
X-POT 6+ |
10 Bar |
86,400 Litres |
Up to 1 L/s |
1” BSP |
Down to 5 micron |
Y |
Y |
Y |
|
X-POT XP |
16 Bar |
302,400 Litres |
Up to 3.5 L/s |
2” BSP |
Down to 1 micron |
N |
N |
N |
|
X-POT XP+ |
16 Bar |
302,400 Litres |
Up to 3.5 L/s |
2” BSP |
Down to 1 micron |
Y |
Y |
Y |
|
X-POT XXP |
30 Bar |
302,400 Litres |
Up to 3.5 L/s |
2” BSP |
Down to 1 micron |
N |
N |
N |
|
X-POT HFHP |
10/30 Bar |
2,592,000 Litres |
Up to 30 L/s |
6” PN 10 or 6” PN 30 |
Down to 1 micron |
N |
N |
N |
Get in touch to discuss your system requirements
